#include <compositor.h>

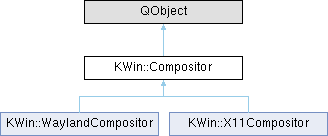

Inheritance diagram for KWin::Compositor:

Public Types
enum class	State { On = 0 , Off , Starting , Stopping }

Signals
void	compositingToggled (bool active)

void	aboutToDestroy ()

void	aboutToToggleCompositing ()

void	sceneCreated ()

Public Member Functions
	~Compositor () override

virtual void	reinitialize ()

bool	isActive ()

WorkspaceScene *	scene () const

CursorScene *	cursorScene () const

RenderBackend *	backend () const

void	keepSupportProperty (xcb_atom_t atom)

void	removeSupportProperty (xcb_atom_t atom)

virtual bool	compositingPossible () const

virtual QString	compositingNotPossibleReason () const

virtual bool	openGLCompositingIsBroken () const

virtual void	inhibit (Window *window)

virtual void	uninhibit (Window *window)

Static Public Member Functions
static Compositor *	self ()

static bool	compositing ()
	Static check to test whether the Compositor is available and active.

Protected Slots
virtual void	composite (RenderLoop *renderLoop)

Protected Member Functions
	Compositor (QObject *parent=nullptr)

virtual void	start ()=0

virtual void	stop ()=0

void	deleteUnusedSupportProperties ()

Output *	findOutput (RenderLoop *loop) const

void	addSuperLayer (RenderLayer *layer)

void	removeSuperLayer (RenderLayer *layer)

void	prePaintPass (RenderLayer layer, QRegion damage)

void	postPaintPass (RenderLayer *layer)

void	paintPass (RenderLayer *layer, const RenderTarget &renderTarget, const QRegion &region)

void	framePass (RenderLayer layer, OutputFrame frame)

Protected Attributes
State	m_state = State::Off

QList< xcb_atom_t >	m_unusedSupportProperties

QTimer	m_unusedSupportPropertyTimer

std::unique_ptr< WorkspaceScene >	m_scene

std::unique_ptr< CursorScene >	m_cursorScene

std::unique_ptr< RenderBackend >	m_backend

QHash< RenderLoop , RenderLayer >	m_superlayers

Static Protected Attributes
static Compositor *	s_compositor = nullptr

Detailed Description

Definition at line 34 of file compositor.h.

Member Enumeration Documentation

◆ State

enum class KWin::Compositor::State

strong

Enumerator
On
Off
Starting
Stopping

Definition at line 38 of file compositor.h.

Constructor & Destructor Documentation

◆ ~Compositor()

KWin::Compositor::~Compositor ( )

override

Definition at line 67 of file compositor.cpp.

◆ Compositor()

KWin::Compositor::Compositor ( QObject * parent = nullptr )

explicitprotected

Definition at line 45 of file compositor.cpp.

Member Function Documentation

◆ aboutToDestroy

void KWin::Compositor::aboutToDestroy ( )

signal

◆ aboutToToggleCompositing

void KWin::Compositor::aboutToToggleCompositing ( )

signal

◆ addSuperLayer()

void KWin::Compositor::addSuperLayer ( RenderLayer * layer )

protected

Definition at line 84 of file compositor.cpp.

◆ backend()

RenderBackend * KWin::Compositor::backend ( ) const

inline

Definition at line 68 of file compositor.h.

◆ composite

void KWin::Compositor::composite ( RenderLoop * renderLoop )

protectedvirtualslot

Reimplemented in KWin::X11Compositor.

Definition at line 136 of file compositor.cpp.

◆ compositing()

static bool KWin::Compositor::compositing ( )

inlinestatic

Static check to test whether the Compositor is available and active.

Returns: bool true if there is a Compositor and it is active, false otherwise

Definition at line 78 of file compositor.h.

◆ compositingNotPossibleReason()

QString KWin::Compositor::compositingNotPossibleReason ( ) const

virtual

Returns a user facing text explaining why compositing is not possible in case compositingPossible returns false.

The default implementation returns an empty string.

See also: compositingPossible

Reimplemented in KWin::X11Compositor.

Definition at line 282 of file compositor.cpp.

◆ compositingPossible()

bool KWin::Compositor::compositingPossible ( ) const

virtual

Whether Compositing is possible in the Platform. Returning false in this method makes only sense if requiresCompositing returns false.

The default implementation returns true.

See also: requiresCompositing

Reimplemented in KWin::X11Compositor.

Definition at line 277 of file compositor.cpp.

◆ compositingToggled

void KWin::Compositor::compositingToggled ( bool active )

signal

◆ cursorScene()

CursorScene * KWin::Compositor::cursorScene ( ) const

inline

Definition at line 64 of file compositor.h.

◆ deleteUnusedSupportProperties()

void KWin::Compositor::deleteUnusedSupportProperties ( )

protected

Definition at line 108 of file compositor.cpp.

◆ findOutput()

Output * KWin::Compositor::findOutput ( RenderLoop * loop ) const

protected

Definition at line 73 of file compositor.cpp.

◆ framePass()

void KWin::Compositor::framePass	(	RenderLayer *	layer,
		OutputFrame *	frame )

protected

Definition at line 220 of file compositor.cpp.

◆ inhibit()

void KWin::Compositor::inhibit ( Window * window )

virtual

Reimplemented in KWin::X11Compositor.

Definition at line 292 of file compositor.cpp.

◆ isActive()

bool KWin::Compositor::isActive ( )

Whether the Compositor is active. That is a Scene is present and the Compositor is not shutting down itself.

Definition at line 272 of file compositor.cpp.

◆ keepSupportProperty()

void KWin::Compositor::keepSupportProperty ( xcb_atom_t atom )

Definition at line 97 of file compositor.cpp.

◆ openGLCompositingIsBroken()

bool KWin::Compositor::openGLCompositingIsBroken ( ) const

virtual

Whether OpenGL compositing is broken. The Platform can implement this method if it is able to detect whether OpenGL compositing broke (e.g. triggered a crash in a previous run).

Default implementation returns false.

See also: createOpenGLSafePoint

Reimplemented in KWin::X11Compositor.

Definition at line 287 of file compositor.cpp.

◆ paintPass()

void KWin::Compositor::paintPass	(	RenderLayer *	layer,
		const RenderTarget &	renderTarget,
		const QRegion &	region )

protected

Definition at line 260 of file compositor.cpp.

◆ postPaintPass()

void KWin::Compositor::postPaintPass ( RenderLayer * layer )

protected

Definition at line 249 of file compositor.cpp.

◆ prePaintPass()

void KWin::Compositor::prePaintPass	(	RenderLayer *	layer,
		QRegion *	damage )

protected

Definition at line 229 of file compositor.cpp.

◆ reinitialize()

void KWin::Compositor::reinitialize ( )

virtual

Re-initializes the Compositor completely. Connected to the D-Bus signal org.kde.KWin /KWin reinitCompositing

Reimplemented in KWin::X11Compositor.

Definition at line 124 of file compositor.cpp.

◆ removeSuperLayer()

void KWin::Compositor::removeSuperLayer ( RenderLayer * layer )

protected

Definition at line 90 of file compositor.cpp.

◆ removeSupportProperty()

void KWin::Compositor::removeSupportProperty ( xcb_atom_t atom )

Definition at line 102 of file compositor.cpp.

◆ scene()

WorkspaceScene * KWin::Compositor::scene ( ) const

inline

Definition at line 60 of file compositor.h.

◆ sceneCreated

void KWin::Compositor::sceneCreated ( )

signal

◆ self()

Compositor * KWin::Compositor::self ( )

static

Definition at line 40 of file compositor.cpp.

◆ start()

virtual void KWin::Compositor::start ( )

protectedpure virtual

Implemented in KWin::WaylandCompositor, and KWin::X11Compositor.

◆ stop()

virtual void KWin::Compositor::stop ( )

protectedpure virtual

Implemented in KWin::WaylandCompositor, and KWin::X11Compositor.

◆ uninhibit()

void KWin::Compositor::uninhibit ( Window * window )

virtual

Reimplemented in KWin::X11Compositor.

Definition at line 296 of file compositor.cpp.

Member Data Documentation

◆ m_backend

std::unique_ptr<RenderBackend> KWin::Compositor::m_backend

protected

Definition at line 154 of file compositor.h.

◆ m_cursorScene

std::unique_ptr<CursorScene> KWin::Compositor::m_cursorScene

protected

Definition at line 153 of file compositor.h.

◆ m_scene

std::unique_ptr<WorkspaceScene> KWin::Compositor::m_scene

protected

Definition at line 152 of file compositor.h.

◆ m_state

State KWin::Compositor::m_state = State::Off

protected

Definition at line 149 of file compositor.h.

◆ m_superlayers

QHash<RenderLoop *, RenderLayer *> KWin::Compositor::m_superlayers

protected

Definition at line 155 of file compositor.h.

◆ m_unusedSupportProperties

QList<xcb_atom_t> KWin::Compositor::m_unusedSupportProperties

protected

Definition at line 150 of file compositor.h.

◆ m_unusedSupportPropertyTimer

QTimer KWin::Compositor::m_unusedSupportPropertyTimer

protected

Definition at line 151 of file compositor.h.

◆ s_compositor

Compositor * KWin::Compositor::s_compositor = nullptr

staticprotected

Definition at line 128 of file compositor.h.

The documentation for this class was generated from the following files:

src/compositor.h
src/compositor.cpp
