#include <output.h>

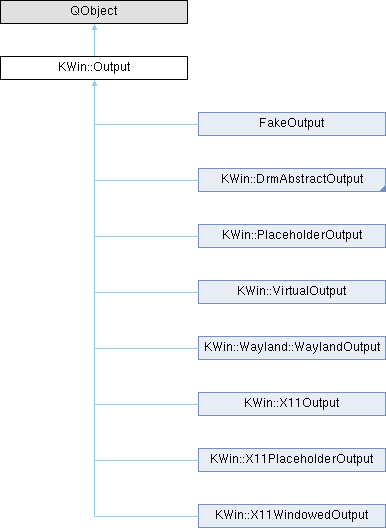

Inheritance diagram for KWin::Output:

Classes
struct	Information

struct	State

Public Types
enum class	DpmsMode { On , Standby , Suspend , Off }

enum class	Capability : uint { Dpms = 1 , Overscan = 1 << 1 , Vrr = 1 << 2 , RgbRange = 1 << 3 , HighDynamicRange = 1 << 4 , WideColorGamut = 1 << 5 , AutoRotation = 1 << 6 , IccProfile = 1 << 7 , Tearing = 1 << 8 }

enum class	SubPixel { Unknown , None , Horizontal_RGB , Horizontal_BGR , Vertical_RGB , Vertical_BGR }

enum class	RgbRange { Automatic = 0 , Full = 1 , Limited = 2 }

enum class	AutoRotationPolicy { Never = 0 , InTabletMode , Always }

Signals
void	geometryChanged ()

void	enabledChanged ()

void	scaleChanged ()

void	aboutToTurnOff (std::chrono::milliseconds time)

void	wakeUp ()

void	aboutToChange (OutputChangeSet *changeSet)

void	changed ()

void	currentModeChanged ()

void	modesChanged ()

void	outputChange (const QRegion &damagedRegion)

void	transformChanged ()

void	dpmsModeChanged ()

void	capabilitiesChanged ()

void	overscanChanged ()

void	vrrPolicyChanged ()

void	rgbRangeChanged ()

void	wideColorGamutChanged ()

void	sdrBrightnessChanged ()

void	highDynamicRangeChanged ()

void	autoRotationPolicyChanged ()

void	iccProfileChanged ()

void	iccProfilePathChanged ()

void	brightnessMetadataChanged ()

void	sdrGamutWidenessChanged ()

void	colorDescriptionChanged ()

Public Member Functions
	Q_ENUM (AutoRotationPolicy)

	Output (QObject *parent=nullptr)

	~Output () override

void	ref ()

void	unref ()

QRect	mapFromGlobal (const QRect &rect) const

QRectF	mapFromGlobal (const QRectF &rect) const

QRectF	mapToGlobal (const QRectF &rect) const

Q_INVOKABLE QPointF	mapToGlobal (const QPointF &pos) const

Q_INVOKABLE QPointF	mapFromGlobal (const QPointF &pos) const

QString	name () const

QUuid	uuid () const

bool	isEnabled () const

QRect	geometry () const

QRectF	geometryF () const

QRect	rect () const

QRectF	rectF () const

uint32_t	refreshRate () const

bool	isInternal () const

qreal	scale () const

QSize	physicalSize () const

QSize	pixelSize () const

QSize	modeSize () const

QString	eisaId () const

QString	manufacturer () const

QString	model () const

QString	serialNumber () const

virtual RenderLoop *	renderLoop () const =0

void	inhibitDirectScanout ()

void	uninhibitDirectScanout ()

bool	directScanoutInhibited () const

OutputTransform	transform () const

OutputTransform	manualTransform () const

QSize	orientateSize (const QSize &size) const

void	applyChanges (const OutputConfiguration &config)

SubPixel	subPixel () const

QString	description () const

Capabilities	capabilities () const

const Edid &	edid () const

QList< std::shared_ptr< OutputMode > >	modes () const

std::shared_ptr< OutputMode >	currentMode () const

DpmsMode	dpmsMode () const

virtual void	setDpmsMode (DpmsMode mode)

uint32_t	overscan () const

VrrPolicy	vrrPolicy () const

RgbRange	rgbRange () const

bool	isPlaceholder () const

bool	isNonDesktop () const

OutputTransform	panelOrientation () const

bool	wideColorGamut () const

bool	highDynamicRange () const

uint32_t	sdrBrightness () const

AutoRotationPolicy	autoRotationPolicy () const

std::shared_ptr< IccProfile >	iccProfile () const

QString	iccProfilePath () const

QByteArray	mstPath () const

virtual bool	setGammaRamp (const std::shared_ptr< ColorTransformation > &transformation)

virtual bool	setChannelFactors (const QVector3D &rgb)

virtual bool	updateCursorLayer ()

std::optional< double >	maxPeakBrightness () const

std::optional< double >	maxAverageBrightness () const

double	minBrightness () const

std::optional< double >	maxPeakBrightnessOverride () const

std::optional< double >	maxAverageBrightnessOverride () const

std::optional< double >	minBrightnessOverride () const

double	sdrGamutWideness () const

const ColorDescription &	colorDescription () const

Static Public Member Functions
static std::chrono::milliseconds	dimAnimationTime ()

Protected Member Functions
void	setInformation (const Information &information)

void	setState (const State &state)

Protected Attributes
State	m_state

Information	m_information

QUuid	m_uuid

int	m_directScanoutCount = 0

int	m_refCount = 1

Properties
QRect	geometry

qreal	devicePixelRatio

QString	name

QString	manufacturer

QString	model

QString	serialNumber

Detailed Description

Generic output representation.

Definition at line 131 of file output.h.

Member Enumeration Documentation

◆ AutoRotationPolicy

enum class KWin::Output::AutoRotationPolicy

strong

Enumerator
Never
InTabletMode
Always

Definition at line 180 of file output.h.

◆ Capability

enum class KWin::Output::Capability : uint

strong

Enumerator
Dpms
Overscan
Vrr
RgbRange
HighDynamicRange
WideColorGamut
AutoRotation
IccProfile
Tearing

Definition at line 150 of file output.h.

◆ DpmsMode

enum class KWin::Output::DpmsMode

strong

Enumerator
On
Standby
Suspend
Off

Definition at line 142 of file output.h.

◆ RgbRange

enum class KWin::Output::RgbRange

strong

Enumerator
Automatic
Full
Limited

Definition at line 173 of file output.h.

◆ SubPixel

enum class KWin::Output::SubPixel

strong

Enumerator
Unknown
None
Horizontal_RGB
Horizontal_BGR
Vertical_RGB
Vertical_BGR

Definition at line 163 of file output.h.

Constructor & Destructor Documentation

◆ Output()

KWin::Output::Output ( QObject * parent = nullptr )

explicit

Definition at line 336 of file output.cpp.

◆ ~Output()

KWin::Output::~Output ( )

override

Definition at line 341 of file output.cpp.

Member Function Documentation

◆ aboutToChange

void KWin::Output::aboutToChange ( OutputChangeSet * changeSet )

signal

Notifies that the output is about to change configuration based on a user interaction.

Be it because it gets a transformation or moved around.

Only to be used for effects

◆ aboutToTurnOff

void KWin::Output::aboutToTurnOff ( std::chrono::milliseconds time )

signal

Notifies that the display will be dimmed in time ms. This allows effects to plan for it and hopefully animate it

◆ applyChanges()

void KWin::Output::applyChanges ( const OutputConfiguration & config )

Definition at line 510 of file output.cpp.

◆ autoRotationPolicy()

Output::AutoRotationPolicy KWin::Output::autoRotationPolicy ( ) const

Definition at line 707 of file output.cpp.

◆ autoRotationPolicyChanged

void KWin::Output::autoRotationPolicyChanged ( )

signal

◆ brightnessMetadataChanged

void KWin::Output::brightnessMetadataChanged ( )

signal

◆ capabilities()

Output::Capabilities KWin::Output::capabilities ( ) const

Definition at line 450 of file output.cpp.

◆ capabilitiesChanged

void KWin::Output::capabilitiesChanged ( )

signal

◆ changed

void KWin::Output::changed ( )

signal

Notifies that the output changed based on a user interaction.

Be it because it gets a transformation or moved around.

Only to be used for effects

◆ colorDescription()

const ColorDescription & KWin::Output::colorDescription ( ) const

Definition at line 732 of file output.cpp.

◆ colorDescriptionChanged

void KWin::Output::colorDescriptionChanged ( )

signal

◆ currentMode()

std::shared_ptr< OutputMode > KWin::Output::currentMode ( ) const

Definition at line 500 of file output.cpp.

◆ currentModeChanged

void KWin::Output::currentModeChanged ( )

signal

◆ description()

QString KWin::Output::description ( ) const

Definition at line 541 of file output.cpp.

◆ dimAnimationTime()

std::chrono::milliseconds KWin::Output::dimAnimationTime ( )

static

Returns: the configured time for an output to dim

This allows the backends to coordinate with the front-end the time they allow to decorate the dimming until the display is turned off

See also: aboutToTurnOff

Definition at line 419 of file output.cpp.

◆ directScanoutInhibited()

bool KWin::Output::directScanoutInhibited ( ) const

Definition at line 414 of file output.cpp.

◆ dpmsMode()

Output::DpmsMode KWin::Output::dpmsMode ( ) const

Definition at line 647 of file output.cpp.

◆ dpmsModeChanged

void KWin::Output::dpmsModeChanged ( )

signal

◆ edid()

const Edid & KWin::Output::edid ( ) const

Definition at line 490 of file output.cpp.

◆ eisaId()

QString KWin::Output::eisaId ( ) const

Definition at line 379 of file output.cpp.

◆ enabledChanged

void KWin::Output::enabledChanged ( )

signal

This signal is emitted when the output has been enabled or disabled.

◆ geometry()

QRect KWin::Output::geometry ( ) const

Returns geometry of this output in device independent pixels.

Definition at line 460 of file output.cpp.

◆ geometryChanged

void KWin::Output::geometryChanged ( )

signal

This signal is emitted when the geometry of this output has changed.

◆ geometryF()

QRectF KWin::Output::geometryF ( ) const

Returns geometry of this output in device independent pixels, without rounding

Definition at line 465 of file output.cpp.

◆ highDynamicRange()

bool KWin::Output::highDynamicRange ( ) const

Definition at line 697 of file output.cpp.

◆ highDynamicRangeChanged

void KWin::Output::highDynamicRangeChanged ( )

signal

◆ iccProfile()

std::shared_ptr< IccProfile > KWin::Output::iccProfile ( ) const

Definition at line 712 of file output.cpp.

◆ iccProfileChanged

void KWin::Output::iccProfileChanged ( )

signal

◆ iccProfilePath()

QString KWin::Output::iccProfilePath ( ) const

Definition at line 717 of file output.cpp.

◆ iccProfilePathChanged

void KWin::Output::iccProfilePathChanged ( )

signal

◆ inhibitDirectScanout()

void KWin::Output::inhibitDirectScanout ( )

Definition at line 404 of file output.cpp.

◆ isEnabled()

bool KWin::Output::isEnabled ( ) const

Returns true if the output is enabled; otherwise returns false.

Definition at line 536 of file output.cpp.

◆ isInternal()

bool KWin::Output::isInternal ( ) const

Returns whether this output is connected through an internal connector, e.g. LVDS, or eDP.

Definition at line 399 of file output.cpp.

◆ isNonDesktop()

bool KWin::Output::isNonDesktop ( ) const

Definition at line 667 of file output.cpp.

◆ isPlaceholder()

bool KWin::Output::isPlaceholder ( ) const

Definition at line 662 of file output.cpp.

◆ manualTransform()

OutputTransform KWin::Output::manualTransform ( ) const

The transform that the user has configured, and which doesn't get changed by automatic rotation

Definition at line 374 of file output.cpp.

◆ manufacturer()

QString KWin::Output::manufacturer ( ) const

Returns the manufacturer of the screen.

Definition at line 384 of file output.cpp.

◆ mapFromGlobal() [1/3]

QPointF KWin::Output::mapFromGlobal ( const QPointF & pos ) const

Definition at line 445 of file output.cpp.

◆ mapFromGlobal() [2/3]

QRect KWin::Output::mapFromGlobal ( const QRect & rect ) const

Maps the specified rect from the global coordinate system to the output-local coords.

Definition at line 425 of file output.cpp.

◆ mapFromGlobal() [3/3]

QRectF KWin::Output::mapFromGlobal ( const QRectF & rect ) const

Maps the specified rect from the global coordinate system to the output-local coords.

Definition at line 430 of file output.cpp.

◆ mapToGlobal() [1/2]

QPointF KWin::Output::mapToGlobal ( const QPointF & pos ) const

Definition at line 440 of file output.cpp.

◆ mapToGlobal() [2/2]

QRectF KWin::Output::mapToGlobal ( const QRectF & rect ) const

Maps a rect in this output coordinates to the global coordinate system.

Definition at line 435 of file output.cpp.

◆ maxAverageBrightness()

std::optional< double > KWin::Output::maxAverageBrightness ( ) const

Definition at line 742 of file output.cpp.

◆ maxAverageBrightnessOverride()

std::optional< double > KWin::Output::maxAverageBrightnessOverride ( ) const

Definition at line 757 of file output.cpp.

◆ maxPeakBrightness()

std::optional< double > KWin::Output::maxPeakBrightness ( ) const

Definition at line 737 of file output.cpp.

◆ maxPeakBrightnessOverride()

std::optional< double > KWin::Output::maxPeakBrightnessOverride ( ) const

Definition at line 752 of file output.cpp.

◆ minBrightness()

double KWin::Output::minBrightness ( ) const

Definition at line 747 of file output.cpp.

◆ minBrightnessOverride()

std::optional< double > KWin::Output::minBrightnessOverride ( ) const

Definition at line 762 of file output.cpp.

◆ model()

QString KWin::Output::model ( ) const

Returns the model of the screen.

Definition at line 389 of file output.cpp.

◆ modes()

QList< std::shared_ptr< OutputMode > > KWin::Output::modes ( ) const

Definition at line 495 of file output.cpp.

◆ modesChanged

void KWin::Output::modesChanged ( )

signal

◆ modeSize()

QSize KWin::Output::modeSize ( ) const

Definition at line 480 of file output.cpp.

◆ mstPath()

QByteArray KWin::Output::mstPath ( ) const

Returns: the mst path of this output. Is empty if invalid

Definition at line 722 of file output.cpp.

◆ name()

QString KWin::Output::name ( ) const

Returns a short identifiable name of this output.

Definition at line 359 of file output.cpp.

◆ orientateSize()

QSize KWin::Output::orientateSize ( const QSize & size ) const

Definition at line 630 of file output.cpp.

◆ outputChange

void KWin::Output::outputChange ( const QRegion & damagedRegion )

signal

◆ overscan()

uint32_t KWin::Output::overscan ( ) const

Definition at line 652 of file output.cpp.

◆ overscanChanged

void KWin::Output::overscanChanged ( )

signal

◆ panelOrientation()

OutputTransform KWin::Output::panelOrientation ( ) const

Definition at line 687 of file output.cpp.

◆ physicalSize()

QSize KWin::Output::physicalSize ( ) const

Returns the non-rotated physical size of this output, in millimeters.

Definition at line 470 of file output.cpp.

◆ pixelSize()

QSize KWin::Output::pixelSize ( ) const

Returns the resolution of the output.

Definition at line 485 of file output.cpp.

◆ Q_ENUM()

KWin::Output::Q_ENUM ( AutoRotationPolicy )

◆ rect()

QRect KWin::Output::rect ( ) const

inline

Equivalent to QRect(QPoint(0, 0), geometry().size())

Definition at line 484 of file output.h.

◆ rectF()

QRectF KWin::Output::rectF ( ) const

inline

Equivalent to QRectF(QPointF(0, 0), geometryF().size())

Definition at line 489 of file output.h.

◆ ref()

void KWin::Output::ref ( )

Definition at line 345 of file output.cpp.

◆ refreshRate()

uint32_t KWin::Output::refreshRate ( ) const

Returns the approximate vertical refresh rate of this output, in mHz.

Definition at line 475 of file output.cpp.

◆ renderLoop()

virtual RenderLoop * KWin::Output::renderLoop ( ) const

pure virtual

Returns the RenderLoop for this output. If the platform does not support per screen rendering, all outputs will share the same render loop. FIXME: remove this and decouple RenderLoop from Output

Implemented in KWin::DrmAbstractOutput, KWin::VirtualOutput, KWin::Wayland::WaylandOutput, KWin::X11Output, KWin::X11PlaceholderOutput, KWin::X11WindowedOutput, KWin::PlaceholderOutput, and FakeOutput.

◆ rgbRange()

Output::RgbRange KWin::Output::rgbRange ( ) const

Definition at line 672 of file output.cpp.

◆ rgbRangeChanged

void KWin::Output::rgbRangeChanged ( )

signal

◆ scale()

qreal KWin::Output::scale ( ) const

Returns the ratio between physical pixels and logical pixels.

Definition at line 455 of file output.cpp.

◆ scaleChanged

void KWin::Output::scaleChanged ( )

signal

This signal is emitted when the device pixel ratio of the output has changed.

◆ sdrBrightness()

uint32_t KWin::Output::sdrBrightness ( ) const

Definition at line 702 of file output.cpp.

◆ sdrBrightnessChanged

void KWin::Output::sdrBrightnessChanged ( )

signal

◆ sdrGamutWideness()

double KWin::Output::sdrGamutWideness ( ) const

Definition at line 767 of file output.cpp.

◆ sdrGamutWidenessChanged

void KWin::Output::sdrGamutWidenessChanged ( )

signal

◆ serialNumber()

QString KWin::Output::serialNumber ( ) const

Returns the serial number of the screen.

Definition at line 394 of file output.cpp.

◆ setChannelFactors()

bool KWin::Output::setChannelFactors ( const QVector3D & rgb )

virtual

Reimplemented in KWin::DrmOutput, and KWin::X11Output.

Definition at line 677 of file output.cpp.

◆ setDpmsMode()

void KWin::Output::setDpmsMode ( DpmsMode mode )

virtual

Reimplemented in KWin::Wayland::WaylandOutput.

Definition at line 643 of file output.cpp.

◆ setGammaRamp()

bool KWin::Output::setGammaRamp ( const std::shared_ptr< ColorTransformation > & transformation )

virtual

Definition at line 682 of file output.cpp.

◆ setInformation()

void KWin::Output::setInformation ( const Information & information )

protected

Definition at line 556 of file output.cpp.

◆ setState()

void KWin::Output::setState ( const State & state )

protected

Definition at line 562 of file output.cpp.

◆ subPixel()

Output::SubPixel KWin::Output::subPixel ( ) const

Definition at line 505 of file output.cpp.

◆ transform()

OutputTransform KWin::Output::transform ( ) const

Definition at line 369 of file output.cpp.

◆ transformChanged

void KWin::Output::transformChanged ( )

signal

◆ uninhibitDirectScanout()

void KWin::Output::uninhibitDirectScanout ( )

Definition at line 409 of file output.cpp.

◆ unref()

void KWin::Output::unref ( )

Definition at line 350 of file output.cpp.

◆ updateCursorLayer()

bool KWin::Output::updateCursorLayer ( )

virtual

Reimplemented in KWin::DrmOutput, KWin::Wayland::WaylandOutput, and KWin::X11WindowedOutput.

Definition at line 727 of file output.cpp.

◆ uuid()

QUuid KWin::Output::uuid ( ) const

Returns the identifying uuid of this output.

Definition at line 364 of file output.cpp.

◆ vrrPolicy()

VrrPolicy KWin::Output::vrrPolicy ( ) const

Definition at line 657 of file output.cpp.

◆ vrrPolicyChanged

void KWin::Output::vrrPolicyChanged ( )

signal

◆ wakeUp

void KWin::Output::wakeUp ( )

signal

Notifies that the output has been turned on and the wake can be decorated.

◆ wideColorGamut()

bool KWin::Output::wideColorGamut ( ) const

Definition at line 692 of file output.cpp.

◆ wideColorGamutChanged

void KWin::Output::wideColorGamutChanged ( )

signal

Member Data Documentation

◆ m_directScanoutCount

int KWin::Output::m_directScanoutCount = 0

protected

Definition at line 480 of file output.h.

◆ m_information

Information KWin::Output::m_information

protected

Definition at line 478 of file output.h.

◆ m_refCount

int KWin::Output::m_refCount = 1

protected

Definition at line 481 of file output.h.

◆ m_state

State KWin::Output::m_state

protected

Definition at line 477 of file output.h.

◆ m_uuid

QUuid KWin::Output::m_uuid

protected

Definition at line 479 of file output.h.

Property Documentation

◆ devicePixelRatio

qreal KWin::Output::devicePixelRatio

read

Definition at line 135 of file output.h.

◆ geometry

QRect KWin::Output::geometry

read

Definition at line 134 of file output.h.

◆ manufacturer

QString KWin::Output::manufacturer

read

Definition at line 137 of file output.h.

◆ model

QString KWin::Output::model

read

Definition at line 138 of file output.h.

◆ name

QString KWin::Output::name

read

Definition at line 136 of file output.h.

◆ serialNumber

QString KWin::Output::serialNumber

read

Definition at line 139 of file output.h.

The documentation for this class was generated from the following files:

src/core/output.h
src/core/output.cpp

Classes

Public Types

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Properties

Detailed Description

Member Enumeration Documentation

◆ AutoRotationPolicy

◆ Capability

◆ DpmsMode

◆ RgbRange

◆ SubPixel

Constructor & Destructor Documentation

◆ Output()

◆ ~Output()

Member Function Documentation

◆ aboutToChange

◆ aboutToTurnOff

◆ applyChanges()

◆ autoRotationPolicy()

◆ autoRotationPolicyChanged

◆ brightnessMetadataChanged

◆ capabilities()

◆ capabilitiesChanged

◆ changed

◆ colorDescription()

◆ colorDescriptionChanged

◆ currentMode()

◆ currentModeChanged

◆ description()

◆ dimAnimationTime()

◆ directScanoutInhibited()

◆ dpmsMode()

◆ dpmsModeChanged

◆ edid()

◆ eisaId()

◆ enabledChanged

◆ geometry()

◆ geometryChanged

◆ geometryF()

◆ highDynamicRange()

◆ highDynamicRangeChanged

◆ iccProfile()

◆ iccProfileChanged

◆ iccProfilePath()

◆ iccProfilePathChanged

◆ inhibitDirectScanout()

◆ isEnabled()

◆ isInternal()

◆ isNonDesktop()

◆ isPlaceholder()

◆ manualTransform()

◆ manufacturer()

◆ mapFromGlobal() [1/3]

◆ mapFromGlobal() [2/3]

◆ mapFromGlobal() [3/3]

◆ mapToGlobal() [1/2]

◆ mapToGlobal() [2/2]

◆ maxAverageBrightness()

◆ maxAverageBrightnessOverride()

◆ maxPeakBrightness()

◆ maxPeakBrightnessOverride()

◆ minBrightness()

◆ minBrightnessOverride()

◆ model()

◆ modes()

◆ modesChanged

◆ modeSize()

◆ mstPath()

◆ name()

◆ orientateSize()

◆ outputChange

◆ overscan()

◆ overscanChanged

◆ panelOrientation()

◆ physicalSize()

◆ pixelSize()
